ASME B18.2.1 Hex Bolts

Scope

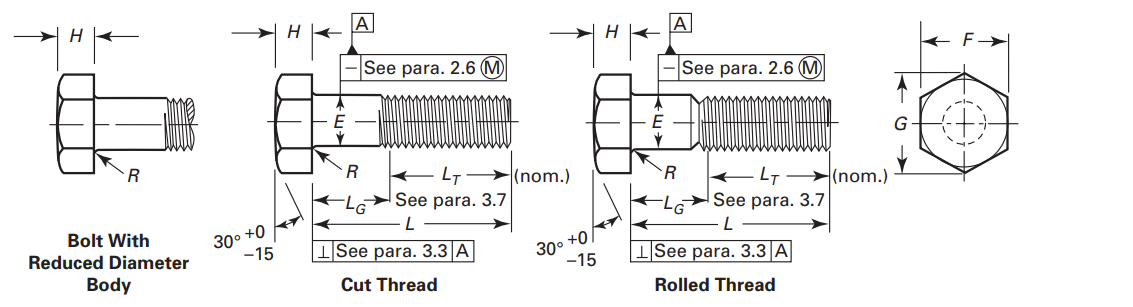

ASME B18.2.1 Hex Bolts dimension standard covers the dimensional requirements for product types of bolts and screws recognized as American National Standard. Also included are appendices covering gaging procedures, grade markings for bolts and screws, formulas on which dimensional data are based, and a specification to assist in identifying a product as being a screw or a bolt. Where questions arise concerning acceptance of product, the dimensions in the tables shall govern over recalculation by formula. Heavy hex structural bolts, formerly covered in ASME B18.2.1, are now covered in ASME B18.2.6, The Tables measurements are also converted into millimeters to make the information clearer and easier to to understand.

ASME B18.2.1 Hex Bolts Dimensions (mm)

Nominal Size	Full-Size Body Diameter, E		Width Across Flats, F			Width Across Corners, G		Head Height, H			Radius of Fillet, R		Nominal Thread Length, L_T
Nominal Size	Max	Min	Basic	Max	Min	Max	Min	Basic	Max	Min	Max	Min	>152.4 mm	<152.4 mm
1/4	6.604	6.020	11.113	11.125	10.795	12.827	12.294	4.366	4.775	3.810	0.762	0.254	19.050	25.400
5/16	8.230	7.569	12.700	12.700	12.294	14.656	14.021	5.556	5.969	4.953	0.762	0.254	22.225	28.575
3/8	9.855	9.144	14.288	14.275	13.818	16.510	15.748	6.350	6.807	5.740	0.762	0.254	25.400	31.750
7/16	11.481	10.693	15.875	15.875	15.316	18.339	17.450	7.541	8.026	6.909	0.762	0.254	28.575	34.925
1/2	13.081	12.243	19.050	19.050	18.415	21.996	20.980	8.731	9.246	7.671	0.762	0.254	31.750	38.100
5/8	16.307	15.367	23.813	23.825	23.012	27.508	26.238	10.716	11.278	9.601	1.524	0.508	38.100	44.450
3/4	19.507	18.517	28.575	28.575	27.635	32.995	31.496	12.700	13.310	11.557	1.524	0.508	44.450	50.800
7/8	22.733	21.641	33.338	33.325	32.233	38.506	36.754	14.684	15.342	13.487	1.524	0.508	50.800	57.150
1	25.959	24.790	38.100	38.100	36.830	43.993	41.986	17.066	17.780	15.011	2.286	0.762	57.150	63.500
1 1/8	29.185	27.889	42.863	42.875	41.427	49.505	47.219	19.050	19.812	16.713	2.286	0.762	63.500	69.850
1 1/4	32.436	31.064	47.625	47.625	46.025	54.991	52.476	21.431	22.250	19.025	2.286	0.762	69.850	76.200
1 3/8	35.662	34.163	52.388	52.375	50.648	60.503	57.734	23.019	23.876	20.574	2.286	0.762	76.200	82.550
1 1/2	38.887	37.338	57.150	57.150	55.245	65.989	62.992	25.400	26.314	22.911	2.286	0.762	82.550	88.900
1 5/8	42.113	40.411	61.913	61.925	59.842	71.501	66.446	26.194	28.346	24.841	2.286	0.762	88.900	95.250
1 3/4	45.339	43.586	66.675	66.675	64.465	76.987	73.482	27.781	30.378	26.772	3.048	1.016	95.250	101.600
1 7/8	48.565	46.711	71.438	71.425	69.063	82.499	78.715	31.750	32.410	28.702	3.048	1.016	101.600	107.950
2	51.791	49.886	76.200	76.200	73.660	87.986	83.972	34.131	35.255	29.845	3.048	1.016	107.950	114.300
2 1/4	58.547	56.236	85.725	85.725	82.855	98.984	94.463	38.100	39.319	33.706	4.826	1.524	120.650	127.000
2 1/2	64.999	62.509	95.250	95.250	92.075	109.982	104.978	42.069	43.383	37.567	4.826	1.524	133.350	139.700
2 3/4	71.806	68.859	104.775	104.775	101.295	120.980	115.468	46.038	47.473	41.453	4.826	1.524	146.050	152.400
3	78.257	75.209	114.300	114.300	110.490	131.978	125.959	50.800	52.324	46.101	4.826	1.524	158.750	165.100
3 1/4	84.709	81.534	123.825	123.825	119.685	142.977	136.449	55.563	57.175	49.174	4.826	1.524	171.450	177.800
3 1/2	91.161	87.909	133.350	133.350	128.905	153.975	146.964	58.738	60.452	52.248	4.826	1.524	184.150	190.500
3 3/4	97.993	94.640	142.875	142.875	138.100	164.973	157.429	63.500	65.329	56.921	4.826	1.524	196.850	203.200
4	104.419	100.965	152.400	152.400	147.320	175.971	167.945	68.263	70.206	61.570	4.826	1.524	209.550	215.900

ASME B18.2.1 Hex Bolts Length Tolerance (mm)

Nominal Length	Size
Nominal Length	1/4 to 3/8	7/16 and 1/2	9/16 to 3/4	7/8 and 1	1 1/8 to 1 1/2	Over 1 1/2
Up to 25.4 mm, incl.	+0.508 0.762	+0.508 0.762	+0.508 0.762	...	...	...
Over 25.4 mm to 63.5 mm, incl.	+0.508 1.016	+1.016 1.524	+1.524 2.032	+2.032 2.54	+3.048 3.048	+4.572 4.572
Over 63.5 mm to 101.6 mm, incl.	+1.016 1.524	+1.524 2.032	+2.032 2.54	+2.54 3.556	+4.064 4.064	+5.08 5.08
Over 101.6 mm to 152.4 mm, incl.	+1.524 2.54	+2.032 2.54	+2.54 2.54	+3.048 4.064	+4.572 4.572	+5.588 5.588
Longer than 152.4 mm	+2.54 4.572	+3.048 4.572	+3.556 4.572	+4.064 5.08	+5.588 5.588	+6.096 6.096

ASME B18.2.1 Hex Bolts Grip Gaging Lengths (mm)

Nominal Size	Nominal Length, Lg, max. / Lb, min.
	1-1/4		1-3/8		1-1/2		1-5/8		1-3/4		1-7/8		2		2-1/8		2-1/4		2-3/8		2-1/2		2-5/8		2-3/4		2-7/8		3		3-1/4		3-1/2		3-3/4		4		4-1/4		4-1/2		4-3/4		5		5-1/4		5-1/2		5-3/4		6		6-1/4		6-1/2		6-3/4		7		7-1/4		7-1/2		7-3/4		8		8-1/4		8-1/2		8-3/4		9		9-1/4		9-1/2		9-3/4		10		11		12
	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.
1/4	0.50	0.25	0.63	0.38	0.75	0.50	0.88	0.62	1.00	0.75	1.12	0.88	1.25	1.00	1.38	1.12	1.50	1.25	1.62	1.38	1.75	1.50	1.88	1.62	2.00	1.75	2.12	1.88	2.52	2.00	2.50	2.25	2.75	2.50	3.00	2.75	3.25	3.00	3.50	3.25	3.75	3.50	4.00	3.75	4.25	4.00	4.50	4.25	4.75	4.50	5.00	4.75	5.25	5.00	5.25	5.00	5.50	5.25	5.75	5.50	6.00	5.75	6.25	6.00	6.50	6.25	6.75	6.50	7.00	6.75	7.25	7.00	7.50	7.25	7.75	7.50	8.00	7.75	8.25	8.00	8.50	8.25	8.75	8.50	9.00	8.75	10.00	9.75	11.00	10.75
5/16	Full thread		0.50	0.22	0.62	0.35	0.75	0.47	0.88	0.60	1.00	0.72	1.12	0.85	1.25	0.97	1.38	1.10	1.50	1.22	1.62	1.35	1.75	1.47	1.88	1.60	2.00	1.72	2.12	1.85	2.38	2.10	2.62	2.35	2.88	2.60	3.12	2.85	3.38	3.10	3.62	3.35	3.88	3.60	4.12	3.85	4.38	4.10	4.62	4.35	4.88	4.60	5.12	4.85	5.12	4.85	5.38	5.10	5.62	5.35	5.88	5.60	6.12	5.85	6.38	6.10	6.62	6.35	6.88	6.60	7.12	6.85	7.38	7.10	7.62	7.35	7.88	7.60	8.12	7.85	8.38	8.10	8.62	8.35	8.88	8.60	9.88	9.60	10.88	10.60
3/8	Full thread		Full thread		0.50	0.19	0.62	0.31	0.75	0.44	0.88	0.56	1.00	0.69	1.12	0.81	1.25	0.94	1.38	1.06	1.50	1.19	1.62	1.31	1.75	1.44	1.88	1.56	2.00	1.69	2.25	1.94	2.50	2.19	2.75	2.44	3.00	2.69	3.25	2.94	3.50	3.19	3.75	3.44	4.00	3.69	4.25	3.94	4.50	4.19	4.75	4.44	5.00	4.69	5.00	4.69	5.25	4.94	5.50	5.19	5.75	5.44	6.00	5.69	6.25	5.94	6.50	6.19	6.75	6.44	7.00	6.69	7.25	6.94	7.50	7.19	7.75	7.44	8.00	7.69	8.25	7.94	8.50	8.19	8.75	8.44	9.75	9.44	10.75	10.44
7/16	Full thread		Full thread		Full thread		Full thread		0.63	0.27	0.75	0.39	0.88	0.52	1.00	0.64	1.12	0.77	1.25	0.89	1.38	1.02	1.50	1.14	1.62	1.27	1.75	1.39	1.88	1.52	2.12	1.77	2.38	2.02	2.62	2.27	2.88	2.52	3.12	2.77	3.38	3.02	3.62	3.27	3.88	3.52	4.12	3.77	4.38	4.02	4.63	4.27	4.88	4.52	4.88	4.52	5.12	4.77	5.38	5.02	5.62	5.27	5.88	5.52	6.12	5.77	6.38	6.02	6.62	6.27	6.88	6.52	7.12	6.77	7.38	7.02	7.62	7.27	7.88	7.52	8.12	7.77	8.38	8.02	8.62	8.27	9.62	9.27	10.62	10.27
1/2	Full thread		Full thread		Full thread		Full thread		Full thread		0.63	0.24	0.75	0.38	0.88	0.49	1.00	0.62	1.12	0.74	1.25	0.86	1.38	0.99	1.50	1.12	1.62	1.24	1.75	1.36	2.00	1.62	2.25	1.86	2.50	2.12	2.75	2.36	3.00	2.62	3.25	2.86	3.50	3.12	3.75	3.36	4.00	3.62	4.25	3.87	4.50	4.12	4.75	4.36	4.75	4.36	5.00	4.62	5.25	4.86	5.50	5.12	5.75	5.36	6.00	5.62	6.25	5.87	6.50	6.12	6.75	6.36	7.00	6.62	7.25	6.86	7.50	7.12	7.75	7.36	8.00	7.62	8.25	7.86	8.50	8.12	9.50	9.12	10.50	10.12
9/16	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		0.75	0.33	0.88	0.45	1.00	0.58	1.12	0.75	1.25	0.83	1.38	0.96	1.50	1.08	1.62	1.21	1.88	1.46	2.12	1.71	2.38	1.96	2.62	2.21	2.88	2.46	3.12	2.71	3.38	2.96	3.62	3.21	3.88	3.46	4.12	3.71	4.38	3.96	4.62	4.21	4.62	4.21	4.88	4.46	5.12	4.71	5.38	4.96	5.62	5.20	5.88	5.46	6.12	5.71	6.38	5.96	6.62	6.21	6.88	6.46	7.12	6.71	7.38	6.96	7.62	7.21	7.88	7.46	8.12	7.71	8.38	7.96	9.38	8.96	10.38	9.96
5/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		0.75	0.30	0.88	0.42	1.00	0.55	1.12	0.67	1.25	0.80	1.38	0.92	1.50	1.05	1.75	1.30	2.00	1.55	2.25	1.80	2.50	2.05	2.75	2.30	3.00	2.55	3.25	2.80	3.50	3.05	3.75	3.30	4.00	3.55	4.25	3.80	4.50	4.05	4.50	4.05	4.75	4.30	5.00	4.55	5.25	4.80	5.50	5.05	5.75	5.30	6.00	5.55	6.25	5.80	6.50	6.05	6.75	6.30	7.00	6.55	7.25	6.80	7.50	7.05	7.75	7.30	8.00	7.55	8.25	7.80	9.25	8.80	10.25	9.80
3/4	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		1.12	0.67	1.25	0.80	1.38	0.92	1.50	1.05	1.50	1.00	1.75	1.25	2.00	1.50	2.25	1.75	2.50	2.00	2.75	2.25	3.00	2.50	3.25	2.75	3.50	3.00	3.75	3.25	4.00	3.50	4.25	3.75	4.25	3.75	4.50	4.00	4.75	4.25	5.00	4.50	5.25	4.75	5.50	5.00	5.75	5.25	6.00	5.50	6.25	5.75	6.50	6.00	6.75	6.25	7.00	6.50	7.25	6.75	7.50	7.00	7.75	7.25	8.00	7.50	9.00	8.50	10.00	9.50
7/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		1.00	0.50	1.12	0.62	1.25	0.75	1.25	0.69	1.50	0.94	1.75	1.19	2.00	1.44	2.25	1.69	2.50	1.94	2.75	2.19	3.00	2.44	3.25	2.69	3.50	2.94	3.75	3.19	4.00	3.44	4.00	3.44	4.25	3.69	4.50	3.94	4.75	4.19	5.00	4.44	5.25	4.69	5.50	4.94	5.75	5.19	6.00	5.44	6.25	5.69	6.50	5.94	6.75	6.19	7.00	6.44	7.25	6.89	7.50	6.94	7.75	7.19	8.75	8.19	9.75	9.19
1	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		0.88	0.32	1.00	0.44	1.00	0.38	1.25	0.62	1.50	0.88	1.75	1.12	2.00	1.38	2.25	1.62	2.50	1.88	2.75	2.12	3.00	2.38	3.25	2.62	3.50	2.88	3.75	3.12	3.75	3.12	4.00	3.38	4.25	3.63	4.50	3.88	4.75	4.12	5.00	4.38	5.25	4.52	5.50	4.88	5.75	5.12	6.00	5.38	6.25	5.62	6.50	5.88	6.75	6.12	7.00	6.38	7.25	6.62	7.50	6.88	8.50	7.88	9.50	8.88
1-1/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		1.25	0.54	1.50	0.79	1.75	1.04	2.00	1.29	2.25	1.54	2.50	1.79	2.75	2.04	3.00	2.29	3.25	2.54	3.50	2.79	3.50	2.79	3.75	3.04	4.00	3.29	4.25	3.54	4.50	3.79	4.75	4.04	5.00	4.29	5.25	4.54	5.50	4.79	5.75	5.04	6.00	5.29	6.25	5.54	6.50	5.79	6.75	6.04	7.00	6.29	7.25	6.54	8.25	7.54	9.25	8.54
1-1/4	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		1.25	0.54	1.50	0.79	1.75	1.04	2.00	1.29	2.25	1.54	2.50	1.79	2.75	2.04	3.00	2.29	3.25	2.54	3.25	2.54	3.50	2.79	3.75	3.04	4.00	3.29	4.25	3.54	4.50	3.79	4.75	4.04	5.00	4.29	5.25	4.54	5.50	4.79	5.75	5.04	6.00	5.29	6.25	5.54	6.50	5.79	6.75	6.04	7.00	6.29	8.00	7.29	9.00	8.29
1-3/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		1.50	0.79	1.75	1.04	2.00	1.29	2.25	1.54	2.50	1.79	2.75	2.04	3.00	2.29	3.25	2.54	3.25	2.54	3.50	2.79	3.75	3.04	4.00	3.29	4.25	3.54	4.50	3.79	4.75	4.04	5.00	4.29	5.25	4.54	5.50	4.79	5.75	5.04	6.00	5.29	6.25	5.54	6.50	5.79	6.75	6.04	7.75	7.04	8.75	8.04
1-1/2	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		1.50	0.67	1.75	0.92	2.00	1.17	2.25	1.42	2.50	1.67	2.75	1.92	2.75	1.92	3.00	2.17	3.25	2.42	3.50	2.67	3.75	2.92	4.00	3.17	4.25	3.42	4.50	3.67	4.75	3.92	5.00	4.17	5.25	4.42	5.50	4.67	5.75	4.92	6.00	5.17	6.25	5.42	6.50	5.67	7.50	6.67	8.50	7.67

ASME B18.2.1 Hex Bolts Dimensions (Inch)

Nominal Size	Full-Size Body Diameter, E		Width Across Flats, F			Width Across Corners, G		Head Height, H			Radius of Fillet, R		Nominal Thread Length, L_T
Nominal Size	Max	Min	Basic	Max	Min	Max	Min	Basic	Max	Min	Max	Min	>6"	<6"
1/4	0.260	0.237	7/16	0.438	0.425	0.505	0.484	11/64	0.188	0.150	0.03	0.01	0.750	1.000
5/16	0.324	0.298	1/2	0.500	0.484	0.577	0.552	7/32	0.235	0.195	0.03	0.01	0.875	1.125
3/8	0.388	0.360	9/16	0.562	0.544	0.650	0.620	1/4	0.268	0.226	0.03	0.01	1.000	1.250
7/16	0.452	0.421	5/8	0.625	0.603	0.722	0.687	19/64	0.316	0.272	0.03	0.01	1.125	1.375
1/2	0.515	0.482	3/4	0.750	0.725	0.866	0.826	11/32	0.364	0.302	0.03	0.01	1.250	1.500
5/8	0.642	0.605	15/16	0.938	0.906	1.083	1.033	27/64	0.444	0.378	0.06	0.02	1.500	1.750
3/4	0.768	0.729	1 1/8	1.125	1.088	1.299	1.240	1/2	0.524	0.455	0.06	0.02	1.750	2.000
7/8	0.895	0.852	1 5/16	1.312	1.269	1.516	1.447	37/64	0.604	0.531	0.06	0.02	2.000	2.250
1	1.022	0.976	1 1/2	1.500	1.450	1.732	1.653	43/64	0.700	0.591	0.09	0.03	2.250	2.500
1 1/8	1.149	1.098	1 11/16	1.688	1.631	1.949	1.859	3/4	0.780	0.658	0.09	0.03	2.500	2.750
1 1/4	1.277	1.223	1 7/8	1.875	1.812	2.165	2.066	27/32	0.876	0.749	0.09	0.03	2.750	3.000
1 3/8	1.404	1.345	2 1/16	2.062	1.994	2.382	2.273	29/32	0.940	0.810	0.09	0.03	3.000	3.250
1 1/2	1.531	1.470	2 1/4	2.250	2.175	2.598	2.480	1	1.036	0.902	0.09	0.03	3.250	3.500
1 5/8	1.658	1.591	2 7/16	2.438	2.356	2.815	2.616	1 3/32	1.116	0.978	0.09	0.03	3.500	3.750
1 3/4	1.785	1.716	2 5/8	2.625	2.538	3.031	2.893	1 5/32	1.196	1.054	0.12	0.04	3.750	4.000
1 7/8	1.912	1.839	2 13/16	2.812	2.719	3.248	3.099	1 1/4	1.276	1.130	0.12	0.04	4.000	4.250
2	2.039	1.964	3	3.000	2.900	3.464	3.306	1 11/32	1.388	1.175	0.12	0.04	4.250	4.500
2 1/4	2.305	2.214	3 3/8	3.375	3.262	3.897	3.719	1 1/2	1.548	1.327	0.19	0.06	4.750	5.000
2 1/2	2.559	2.461	3 3/4	3.750	3.625	4.330	4.133	1 21/32	1.708	1.479	0.19	0.06	5.250	5.500
2 3/4	2.827	2.711	4 1/8	4.125	3.988	4.763	4.546	1 13/16	1.869	1.632	0.19	0.06	5.750	6.000
3	3.081	2.961	4 1/2	4.500	4.350	5.196	4.959	2	2.060	1.815	0.19	0.06	6.250	6.500
3 1/4	3.335	3.210	4 7/8	4.875	4.712	5.629	5.372	2 3/16	2.251	1.936	0.19	0.06	6.750	7.000
3 1/2	3.589	3.461	5 1/4	5.250	5.075	6.062	5.786	2 5/16	2.380	2.057	0.19	0.06	7.250	7.500
3 3/4	3.858	3.726	5 5/8	5.625	5.437	6.495	6.198	2 1/2	2.572	2.241	0.19	0.06	7.750	8.000
4	4.111	3.975	6	6.000	5.800	6.928	6.612	2 11/16	2.764	2.424	0.19	0.06	8.250	8.500

ASME B18.2.1 Hex Bolts Length Tolerance (Inch)

Nominal Length	Nominal Size
Nominal Length	1/4 to 3/8	7/16 and 1/2	9/16 to 3/4	7/8 and 1	1 1/8 to 1 1/2	Over 1 1/2
Up to 1 in., incl.	+0.02 0.03	+0.02 0.03	+0.02 0.03	...	...	...
Over 1 in. to 2 1/2 in., incl.	+0.02 0.04	+0.04 0.06	+0.06 0.08	+0.08 0.10	+0.12 0.12	+0.18 0.18
Over 2 1/2 in. to 4 in., incl.	+0.04 0.06	+0.06 0.08	+0.08 0.10	+0.10 0.14	+0.16 0.16	+0.20 0.20
Over 4 in. to 6 in., incl.	+0.06 0.10	+0.08 0.10	+0.10 0.10	+0.12 0.16	+0.18 0.18	+0.22 0.22
Longer than 6 in.	+0.10 0.18	+0.12 0.18	+0.14 0.18	+0.16 0.20	+0.22 0.22	+0.24 0.24

ASME B18.2.1 Hex Bolts Grip Gaging Lengths (mm)

Nominal Size	Nominal Length, Lg, max. / Lb, min.
	1-1/4		1-3/8		1-1/2		1-5/8		1-3/4		1-7/8		2		2-1/8		2-1/4		2-3/8		2-1/2		2-5/8		2-3/4		2-7/8		3		3-1/4		3-1/2		3-3/4		4		4-1/4		4-1/2		4-3/4		5		5-1/4		5-1/2		5-3/4		6		6-1/4		6-1/2		6-3/4		7		7-1/4		7-1/2		7-3/4		8		8-1/4		8-1/2		8-3/4		9		9-1/4		9-1/2		9-3/4		10		11		12
	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.	L_g Max.	L_b Min.
1/4	12.70	6.35	16.00	9.65	19.05	12.70	22.35	15.75	25.40	19.05	28.45	22.35	31.75	25.40	35.05	28.45	38.10	31.75	41.15	35.05	44.45	38.10	47.75	41.15	50.80	44.45	53.85	47.75	64.01	50.80	63.50	57.15	69.85	63.50	76.20	69.85	82.55	76.20	88.90	82.55	95.25	88.90	101.60	95.25	107.95	101.60	114.30	107.95	120.65	114.30	127.00	120.65	133.35	127.00	133.35	127.00	139.70	133.35	146.05	139.70	152.40	146.05	158.75	152.40	165.10	158.75	171.45	165.10	177.80	171.45	184.15	177.80	190.50	184.15	196.85	190.50	203.20	196.85	209.55	203.20	215.90	209.55	222.25	215.90	228.60	222.25	254.00	247.65	279.40	273.05
5/16	Full thread		12.70	5.59	15.75	8.89	19.05	11.94	22.35	15.24	25.40	18.29	28.45	21.59	31.75	24.64	35.05	27.94	38.10	30.99	41.15	34.29	44.45	37.34	47.75	40.64	50.80	43.69	53.85	46.99	60.45	53.34	66.55	59.69	73.15	66.04	79.25	72.39	85.85	78.74	91.95	85.09	98.55	91.44	104.65	97.79	111.25	104.14	117.35	110.49	123.95	116.84	130.05	123.19	130.05	123.19	136.65	129.54	142.75	135.89	149.35	142.24	155.45	148.59	162.05	154.94	168.15	161.29	174.75	167.64	180.85	173.99	187.45	180.34	193.55	186.69	200.15	193.04	206.25	199.39	212.85	205.74	218.95	212.09	225.55	218.44	250.95	243.84	276.35	269.24
3/8	Full thread		Full thread		12.70	4.83	15.75	7.87	19.05	11.18	22.35	14.22	25.40	17.53	28.45	20.57	31.75	23.88	35.05	26.92	38.10	30.23	41.15	33.27	44.45	36.58	47.75	39.62	50.80	42.93	57.15	49.28	63.50	55.63	69.85	61.98	76.20	68.33	82.55	74.68	88.90	81.03	95.25	87.38	101.60	93.73	107.95	100.08	114.30	106.43	120.65	112.78	127.00	119.13	127.00	119.13	133.35	125.48	139.70	131.83	146.05	138.18	152.40	144.53	158.75	150.88	165.10	157.23	171.45	163.58	177.80	169.93	184.15	176.28	190.50	182.63	196.85	188.98	203.20	195.33	209.55	201.68	215.90	208.03	222.25	214.38	247.65	239.78	273.05	265.18
7/16	Full thread		Full thread		Full thread		Full thread		16.00	6.86	19.05	9.91	22.35	13.21	25.40	16.26	28.45	19.56	31.75	22.61	35.05	25.91	38.10	28.96	41.15	32.26	44.45	35.31	47.75	38.61	53.85	44.96	60.45	51.31	66.55	57.66	73.15	64.01	79.25	70.36	85.85	76.71	91.95	83.06	98.55	89.41	104.65	95.76	111.25	102.11	117.60	108.46	123.95	114.81	123.95	114.81	130.05	121.16	136.65	127.51	142.75	133.86	149.35	140.21	155.45	146.56	162.05	152.91	168.15	159.26	174.75	165.61	180.85	171.96	187.45	178.31	193.55	184.66	200.15	191.01	206.25	197.36	212.85	203.71	218.95	210.06	244.35	235.46	269.75	260.86
1/2	Full thread		Full thread		Full thread		Full thread		Full thread		16.00	6.10	19.05	9.65	22.35	12.45	25.40	15.75	28.45	18.80	31.75	21.84	35.05	25.15	38.10	28.45	41.15	31.50	44.45	34.54	50.80	41.15	57.15	47.24	63.50	53.85	69.85	59.94	76.20	66.55	82.55	72.64	88.90	79.25	95.25	85.34	101.60	91.95	107.95	98.30	114.30	104.65	120.65	110.74	120.65	110.74	127.00	117.35	133.35	123.44	139.70	130.05	146.05	136.14	152.40	142.75	158.75	149.10	165.10	155.45	171.45	161.54	177.80	168.15	184.15	174.24	190.50	180.85	196.85	186.94	203.20	193.55	209.55	199.64	215.90	206.25	241.30	231.65	266.70	257.05
9/16	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		19.05	8.38	22.35	11.43	25.40	14.73	28.45	19.05	31.75	21.08	35.05	24.38	38.10	27.43	41.15	30.73	47.75	37.08	53.85	43.43	60.45	49.78	66.55	56.13	73.15	62.48	79.25	68.83	85.85	75.18	91.95	81.53	98.55	87.88	104.65	94.23	111.25	100.58	117.35	106.93	117.35	106.93	123.95	113.28	130.05	119.63	136.65	125.98	142.75	132.08	149.35	138.68	155.45	145.03	162.05	151.38	168.15	157.73	174.75	164.08	180.85	170.43	187.45	176.78	193.55	183.13	200.15	189.48	206.25	195.83	212.85	202.18	238.25	227.58	263.65	252.98
5/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		19.05	7.62	22.35	10.67	25.40	13.97	28.45	17.02	31.75	20.32	35.05	23.37	38.10	26.67	44.45	33.02	50.80	39.37	57.15	45.72	63.50	52.07	69.85	58.42	76.20	64.77	82.55	71.12	88.90	77.47	95.25	83.82	101.60	90.17	107.95	96.52	114.30	102.87	114.30	102.87	120.65	109.22	127.00	115.57	133.35	121.92	139.70	128.27	146.05	134.62	152.40	140.97	158.75	147.32	165.10	153.67	171.45	160.02	177.80	166.37	184.15	172.72	190.50	179.07	196.85	185.42	203.20	191.77	209.55	198.12	234.95	223.52	260.35	248.92
3/4	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		28.45	17.02	31.75	20.32	35.05	23.37	38.10	26.67	38.10	25.40	44.45	31.75	50.80	38.10	57.15	44.45	63.50	50.80	69.85	57.15	76.20	63.50	82.55	69.85	88.90	76.20	95.25	82.55	101.60	88.90	107.95	95.25	107.95	95.25	114.30	101.60	120.65	107.95	127.00	114.30	133.35	120.65	139.70	127.00	146.05	133.35	152.40	139.70	158.75	146.05	165.10	152.40	171.45	158.75	177.80	165.10	184.15	171.45	190.50	177.80	196.85	184.15	203.20	190.50	228.60	215.90	254.00	241.30
7/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		25.40	12.70	28.45	15.75	31.75	19.05	31.75	17.53	38.10	23.88	44.45	30.23	50.80	36.58	57.15	42.93	63.50	49.28	69.85	55.63	76.20	61.98	82.55	68.33	88.90	74.68	95.25	81.03	101.60	87.38	101.60	87.38	107.95	93.73	114.30	100.08	120.65	106.43	127.00	112.78	133.35	119.13	139.70	125.48	146.05	131.83	152.40	138.18	158.75	144.53	165.10	150.88	171.45	157.23	177.80	163.58	184.15	170.18	190.50	176.28	196.85	182.63	222.25	208.03	247.65	233.43
1	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		22.35	8.13	25.40	11.18	25.40	9.65	31.75	15.75	38.10	22.35	44.45	28.45	50.80	35.05	57.15	41.15	63.50	47.75	69.85	53.85	76.20	60.45	82.55	66.55	88.90	73.15	95.25	79.25	95.25	79.25	101.60	85.85	107.95	92.20	114.30	98.55	120.65	104.65	127.00	111.25	133.35	117.60	139.70	123.95	146.05	130.05	152.40	136.65	158.75	142.75	165.10	149.35	171.45	155.45	177.80	162.05	184.15	168.15	190.50	174.75	215.90	200.15	241.30	225.55
1-1/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		31.75	13.72	38.10	20.07	44.45	26.42	50.80	32.77	57.15	39.12	63.50	45.47	69.85	51.82	76.20	58.17	82.55	64.52	88.90	70.87	88.90	70.87	95.25	77.22	101.60	83.57	107.95	89.92	114.30	96.27	120.65	102.62	127.00	108.97	133.35	115.32	139.70	121.67	146.05	128.02	152.40	134.37	158.75	140.72	165.10	147.07	171.45	153.42	177.80	159.77	184.15	166.12	209.55	191.52	234.95	216.92
1-1/4	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		31.75	13.72	38.10	20.07	44.45	26.42	50.80	32.77	57.15	39.12	63.50	45.47	69.85	51.82	76.20	58.17	82.55	64.52	82.55	64.52	88.90	70.87	95.25	77.22	101.60	83.57	107.95	89.92	114.30	96.27	120.65	102.62	127.00	108.97	133.35	115.32	139.70	121.67	146.05	128.02	152.40	134.37	158.75	140.72	165.10	147.07	171.45	153.42	177.80	159.77	203.20	185.17	228.60	210.57
1-3/8	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		38.10	20.07	44.45	26.42	50.80	32.77	57.15	39.12	63.50	45.47	69.85	51.82	76.20	58.17	82.55	64.52	82.55	64.52	88.90	70.87	95.25	77.22	101.60	83.57	107.95	89.92	114.30	96.27	120.65	102.62	127.00	108.97	133.35	115.32	139.70	121.67	146.05	128.02	152.40	134.37	158.75	140.72	165.10	147.07	171.45	153.42	196.85	178.82	222.25	204.22
1-1/2	Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		Full thread		38.10	17.02	44.45	23.37	50.80	29.72	57.15	36.07	63.50	42.42	69.85	48.77	69.85	48.77	76.20	55.12	82.55	61.47	88.90	67.82	95.25	74.17	101.60	80.52	107.95	86.87	114.30	93.22	120.65	99.57	127.00	105.92	133.35	112.27	139.70	118.62	146.05	124.97	152.40	131.32	158.75	137.67	165.10	144.02	190.50	169.42	215.90	194.82

ASME Material Specifications

ASTM A193/A193M Standard Specification for Alloy-Steel and Stainless Steel Bolting Materials for High Temperature or High Pressure Service and Other Special Purpose Applications
ASTM A307 Standard Specification for Carbon Steel Bolts and Studs, 60 000 PSI Tensile Strength
ASTM A449 Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength
ASTM A453/A453M Standard Specification for Bolting, Stud Bolts, Screws, Nuts
ASTM A354 Standard Specification for Quenched and Tempered Alloy Steel Bolts, Studs, and Other Externally Threaded Fasteners
ASTM A320 Standard Specification for Alloy-Steel and Stainless Steel Bolting for Low-Temperature Service
ASTM A1082/A1082M Standard Specification for Bolting, Stud Bolts, Screws, Nuts
ASTM A1014/A1014M Standard Specification for UNS N07718 Bolting, Stud Bolts, Screws, Nuts
ASTM F468 Standard Specification for Nonferrous Bolts, Hex Cap Screws, and Studs
ASTM F593 Standard Specification for Stainless Steel Bolts, Hex Cap Screws, and Studs
ASTM F901 Aluminium Transmission Tower Bolts
ASTM F738 Stud Bolts, Screws
ASTM F1554 Anchor Bolts, Anchor Rods
ASTM F2281 Bolting, Stud Bolts, Screws, Hex Cap Screws, Threaded Rods
ASTM F3125 Heavy Hex Bolts, Screws, Studs
