DIN 2510 Form NF Hexagon Nuts

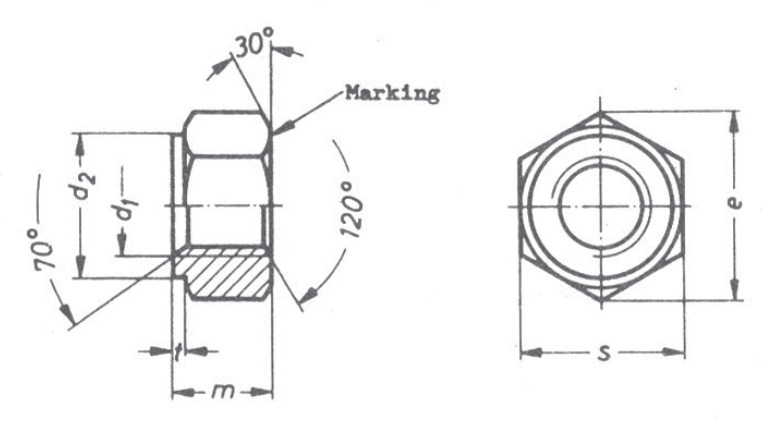

DIN 2510 Form NF Hexagon Nuts Dimensions

DIN 2510 Form NF Dimensions

Thread d1 d2 d3 e
Min.		 e
Max.		 m s t Weight (kg/1000 pcs)
M12 21 14.5 23.91 24.49 12 22 2 31
M16 26 18.5 29.56 30.14 16 27 2 52
M20 31 22.5 35.03 35.72 20 32 2 86
M24 35 26.5 39.55 39.98 24 36 3 124
M27 40 30.5 45.20 45.63 27 41 3 181
M30 45 33.5 50.85 51.28 30 46 3 260
M33 49 36.5 55.37 55.80 33 50 3 330
M36 53.5 39.5 60.79 61.31 36 55 3 425
M39 58.5 42.5 66.44 66.96 39 60 3 560
M42 63.5 45.5 72.09 72.61 42 65 3 705
M45 68.5 49.5 77.74 78.26 45 70 3 900
M48 73.5 53.5 83.39 83.91 48 75 4 1120
M52 78.5 57.5 89.04 89.56 52 80 4 1340
M56 83.5 63 94.47 95.07 56 85 4 1590
M64 93.5 71 105.77 106.37 64 95 4 2230
M72 103.5 79 117.07 117.67 72 105 4 2980
M80 113.5 87 128.37 129.34 80 115 4 3850
M90 128 97 145.09 145.77 90 130 4 5550
M100 143 107 162.04 162.74 100 145 5 7700
M110 153 119 173.34 174.02 110 155 5 9250
M 120 168 129 190.30 191.49 120 170 5 13100
M125 178 134 202.27 201.59 125 180 5 14900
M140 198 149 223.91 224.70 140 200 5 20100
M 150 208 159 235.21 236.00 150 210 5 22800
M160 218 174 - 247.30 160 220 5 26000
M 170 228 180 - 258.60 170 230 5 29400
M180 253 196 - 286.68 180 255 5 41000

DIN 2510 Form NF Tolerance

Thread s
Nom.		 s
Min.		 s
Max.		 e
Min.		 m
Nom.		 m
Min.		 m
Max.
M12 22 21.67 22.00 24.49 12 11.48 12.00
M16 27 26.67 27.00 30.14 16 15.19 16.00
M20 32 31.48 32.00 35.57 20 18.81 20.00
M24 36 35.48 36.00 40.09 24 22.81 24.00
M27 41 40.48 41.00 45.74 27 25.81 27.00
M30 46 45.48 46.00 51.39 30 28.81 30.00
M33 50 49.48 50.00 55.91 33 31.81 33.00
M36 55 54.26 55.00 61.31 36 34.81 36.00
