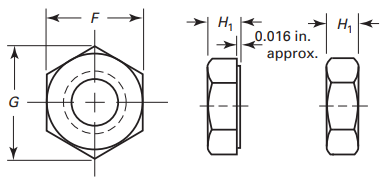

ASME B18.2.2 Heavy Hex Jam Nuts
ASME B18.2.2 Heavy Hex Jam Nuts Dimensions (mm)
| Nominal Size | Basic Major Diameter of Thread | Width Across Flats, F | Width Across Corners, G | Thickness Heavy Hex Jam Nuts, H1 | Maximum Runout of Bearing Surface to Thread Axis, FIM | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic | Min. | Max. | Min. | Max. | Basic | Min. | Max. | |||
| All Strength Levels | ||||||||||
| 1/4 | 0.2500 | 1/2 | 0.488 | 0.500 | 0.556 | 0.577 | 11/64 | 0.156 | 0.188 | 0.017 |
| 5/16 | 0.3125 | 9/16 | 0.546 | 0.562 | 0.622 | 0.650 | 13/64 | 0.186 | 0.220 | 0.020 |
| 3/8 | 0.3750 | 11/16 | 0.669 | 0.688 | 0.763 | 0.794 | 15/64 | 0.216 | 0.252 | 0.021 |
| 7/16 | 0.4375 | 3/4 | 0.728 | 0.750 | 0.830 | 0.866 | 17/64 | 0.247 | 0.285 | 0.022 |
| 1/2 | 0.5000 | 7/8 | 0.850 | 0.875 | 0.969 | 1.010 | 19/64 | 0.277 | 0.317 | 0.023 |
| 9/16 | 0.5625 | 15/16 | 0.909 | 0.938 | 1.037 | 1.083 | 21/64 | 0.307 | 0.349 | 0.024 |
| 5/8 | 0.6250 | 1 1/16 | 1.031 | 1.062 | 1.175 | 1.227 | 23/64 | 0.337 | 0.381 | 0.025 |
| 3/4 | 0.7500 | 1 1/4 | 1.212 | 1.250 | 1.382 | 1.443 | 27/64 | 0.398 | 0.446 | 0.027 |
| 7/8 | 0.8750 | 1 7/16 | 1.394 | 1.438 | 1.589 | 1.660 | 31/64 | 0.458 | 0.510 | 0.029 |
| 1 | 1.0000 | 1 5/8 | 1.575 | 1.625 | 1.796 | 1.876 | 35/64 | 0.519 | 0.575 | 0.031 |
| 1 1/8 | 1.1250 | 1 13/16 | 1.756 | 1.812 | 2.002 | 2.093 | 39/64 | 0.579 | 0.639 | 0.033 |
| 1 1/4 | 1.2500 | 2 | 1.938 | 2.000 | 2.209 | 2.309 | 23/32 | 0.687 | 0.751 | 0.035 |
| 1 3/8 | 1.3750 | 2 3/16 | 2.119 | 2.188 | 2.416 | 2.526 | 25/32 | 0.747 | 0.815 | 0.038 |
| 1 1/2 | 1.5000 | 2 3/8 | 2.300 | 2.375 | 2.622 | 2.742 | 27/32 | 0.808 | 0.880 | 0.041 |
| 1 5/8 | 1.6250 | 2 9/16 | 2.481 | 2.562 | 2.828 | 2.959 | 29/32 | 0.868 | 0.944 | 0.044 |
| 1 3/4 | 1.7500 | 2 3/4 | 2.662 | 2.750 | 3.035 | 3.175 | 31/32 | 0.929 | 1.009 | 0.048 |
| 1 7/8 | 1.8750 | 2 15/16 | 2.844 | 2.938 | 3.242 | 3.392 | 1 1/32 | 0.989 | 1.073 | 0.051 |
| 2 | 2.0000 | 3 1/8 | 3.025 | 3.125 | 3.449 | 3.608 | 1 3/32 | 1.050 | 1.138 | 0.055 |
| 2 1/4 | 2.2500 | 3 1/2 | 3.388 | 3.500 | 3.862 | 4.041 | 1 13/64 | 1.155 | 1.251 | 0.061 |
| 2 1/2 | 2.5000 | 3 7/8 | 3.750 | 3.875 | 4.275 | 4.474 | 1 29/64 | 1.401 | 1.505 | 0.068 |
| 2 3/4 | 2.7500 | 4 1/4 | 4.112 | 4.250 | 4.688 | 4.907 | 1 37/64 | 1.522 | 1.634 | 0.074 |
| 3 | 3.0000 | 4 5/8 | 4.475 | 4.625 | 5.102 | 5.340 | 1 45/64 | 1.643 | 1.763 | 0.081 |
| 3 1/4 | 3.2500 | 5 | 4.838 | 5.000 | 5.515 | 5.774 | 1 13/16 | 1.748 | 1.876 | 0.087 |
| 3 1/2 | 3.5000 | 5 3/8 | 5.200 | 5.375 | 5.928 | 6.207 | 1 15/16 | 1.870 | 2.006 | 0.094 |
| 3 3/4 | 3.7500 | 5 3/4 | 5.562 | 5.750 | 6.341 | 6.640 | 2 1/16 | 1.990 | 2.134 | 0.100 |
| 4 | 4.0000 | 6 1/8 | 5.925 | 6.125 | 6.755 | 7.073 | 2 3/16 | 2.112 | 2.264 | 0.107 |
ASME B18.2.2 Heavy Hex Jam Nuts Dimensions (Inch)
| Nominal Size | Basic Major Diameter of Thread | Width Across Flats, F | Width Across Corners, G | Thickness Heavy Hex Jam Nuts, H1 | Maximum Runout of Bearing Surface to Thread Axis, FIM | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic | Min. | Max. | Min. | Max. | Basic | Min. | Max. | |||
| All Strength Levels | ||||||||||
| 1/4 | 0.2500 | 1/2 | 0.488 | 0.500 | 0.556 | 0.577 | 11/64 | 0.156 | 0.188 | 0.017 |
| 5/16 | 0.3125 | 9/16 | 0.546 | 0.562 | 0.622 | 0.650 | 13/64 | 0.186 | 0.220 | 0.020 |
| 3/8 | 0.3750 | 11/16 | 0.669 | 0.688 | 0.763 | 0.794 | 15/64 | 0.216 | 0.252 | 0.021 |
| 7/16 | 0.4375 | 3/4 | 0.728 | 0.750 | 0.830 | 0.866 | 17/64 | 0.247 | 0.285 | 0.022 |
| 1/2 | 0.5000 | 7/8 | 0.850 | 0.875 | 0.969 | 1.010 | 19/64 | 0.277 | 0.317 | 0.023 |
| 9/16 | 0.5625 | 15/16 | 0.909 | 0.938 | 1.037 | 1.083 | 21/64 | 0.307 | 0.349 | 0.024 |
| 5/8 | 0.6250 | 1 1/16 | 1.031 | 1.062 | 1.175 | 1.227 | 23/64 | 0.337 | 0.381 | 0.025 |
| 3/4 | 0.7500 | 1 1/4 | 1.212 | 1.250 | 1.382 | 1.443 | 27/64 | 0.398 | 0.446 | 0.027 |
| 7/8 | 0.8750 | 1 7/16 | 1.394 | 1.438 | 1.589 | 1.660 | 31/64 | 0.458 | 0.510 | 0.029 |
| 1 | 1.0000 | 1 5/8 | 1.575 | 1.625 | 1.796 | 1.876 | 35/64 | 0.519 | 0.575 | 0.031 |
| 1 1/8 | 1.1250 | 1 13/16 | 1.756 | 1.812 | 2.002 | 2.093 | 39/64 | 0.579 | 0.639 | 0.033 |
| 1 1/4 | 1.2500 | 2 | 1.938 | 2.000 | 2.209 | 2.309 | 23/32 | 0.687 | 0.751 | 0.035 |
| 1 3/8 | 1.3750 | 2 3/16 | 2.119 | 2.188 | 2.416 | 2.526 | 25/32 | 0.747 | 0.815 | 0.038 |
| 1 1/2 | 1.5000 | 2 3/8 | 2.300 | 2.375 | 2.622 | 2.742 | 27/32 | 0.808 | 0.880 | 0.041 |
| 1 5/8 | 1.6250 | 2 9/16 | 2.481 | 2.562 | 2.828 | 2.959 | 29/32 | 0.868 | 0.944 | 0.044 |
| 1 3/4 | 1.7500 | 2 3/4 | 2.662 | 2.750 | 3.035 | 3.175 | 31/32 | 0.929 | 1.009 | 0.048 |
| 1 7/8 | 1.8750 | 2 15/16 | 2.844 | 2.938 | 3.242 | 3.392 | 1 1/32 | 0.989 | 1.073 | 0.051 |
| 2 | 2.0000 | 3 1/8 | 3.025 | 3.125 | 3.449 | 3.608 | 1 3/32 | 1.050 | 1.138 | 0.055 |
| 2 1/4 | 2.2500 | 3 1/2 | 3.388 | 3.500 | 3.862 | 4.041 | 1 13/64 | 1.155 | 1.251 | 0.061 |
| 2 1/2 | 2.5000 | 3 7/8 | 3.750 | 3.875 | 4.275 | 4.474 | 1 29/64 | 1.401 | 1.505 | 0.068 |
| 2 3/4 | 2.7500 | 4 1/4 | 4.112 | 4.250 | 4.688 | 4.907 | 1 37/64 | 1.522 | 1.634 | 0.074 |
| 3 | 3.0000 | 4 5/8 | 4.475 | 4.625 | 5.102 | 5.340 | 1 45/64 | 1.643 | 1.763 | 0.081 |
| 3 1/4 | 3.2500 | 5 | 4.838 | 5.000 | 5.515 | 5.774 | 1 13/16 | 1.748 | 1.876 | 0.087 |
| 3 1/2 | 3.5000 | 5 3/8 | 5.200 | 5.375 | 5.928 | 6.207 | 1 15/16 | 1.870 | 2.006 | 0.094 |
| 3 3/4 | 3.7500 | 5 3/4 | 5.562 | 5.750 | 6.341 | 6.640 | 2 1/16 | 1.990 | 2.134 | 0.100 |
| 4 | 4.0000 | 6 1/8 | 5.925 | 6.125 | 6.755 | 7.073 | 2 3/16 | 2.112 | 2.264 | 0.107 |
